면적유량계

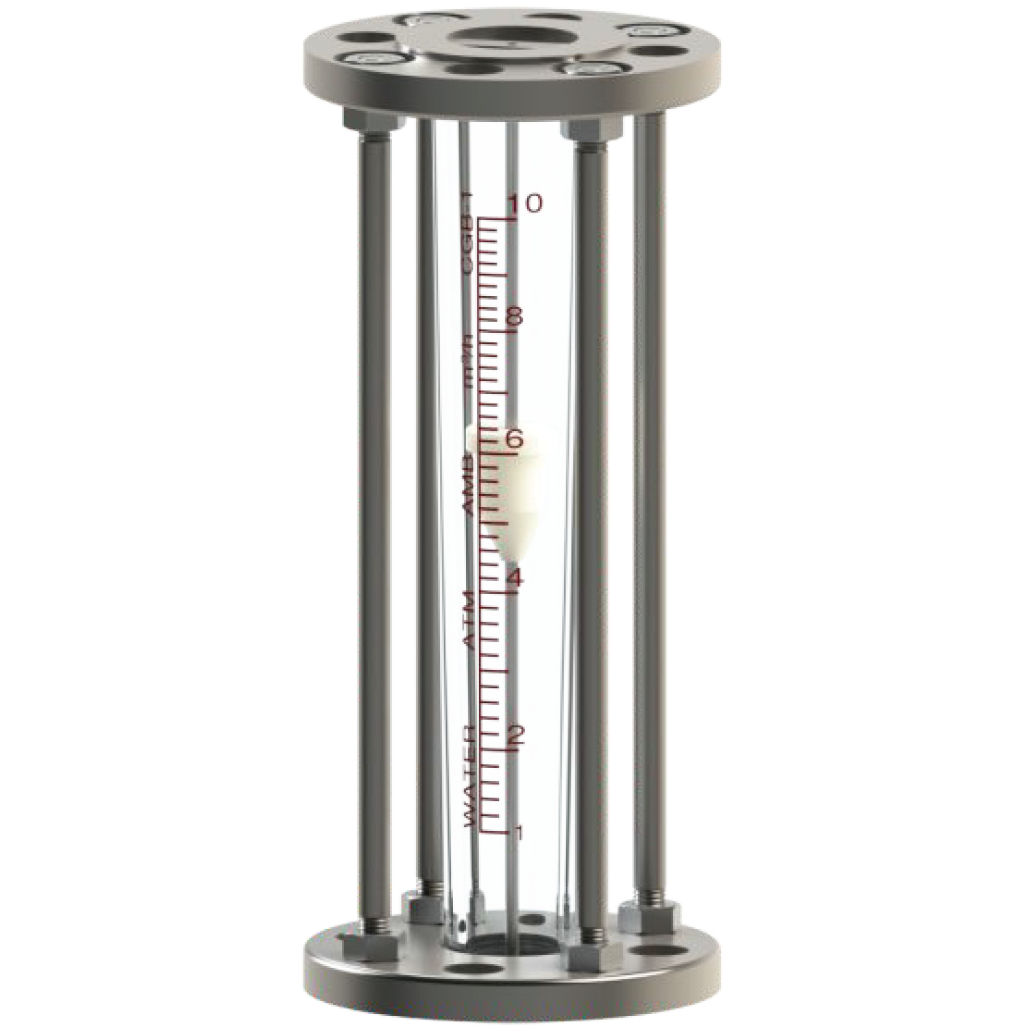

F808_Glass tube flowmeter

F808

Description

It can be used to measure the instantaneous flowrate of liquids and gases in various applications.
It is a flowmeter installed when space is limited. It can be added as electrical signals.

Specification

Measuring Liquid, Gas
Meter size 15A (½") ~ 50A (2")
Material Body : 304SS, 316SS, 316L SS, PTFE, PVC
Float : 304SS, 316SS, PVC, PTFE, ACETAL
Packing : NBR, VITON, EPDM, PTFE
Pressure rating Max.8 kgf/cm²
Temperature Max.120 ℃
Connection Flange connection (JIS / ANSI / DIN / Other)
Accuracy ±3.0 % of full scale

Model & Type

Model Type
F801 Glass tube flowmeter_Con'n : Flange
F802 Glass tube flowmeter_Con'n : Socket & Screw
F803 Glass tube flowmeter_Mat'l : PVC
F804 Glass tube flowmeter_Mat'l : PTFE
F805 Glass tube flowmeter_Mat'l : Teflon Lined
F806 Glass tube flowmeter_Mat'l : PP & PE
F807 Glass tube flowmeter_without Guide rod
F808 Glass tube flowmeter_Direct mount
F809 Glass tube flowmeter_with Protect cover
F810 Glass tube flowmeter_with Control valve
F811 Glass tube flowmeter_Con'n : Sanitary clamp
F812 Glass tube flowmeter_Large size type
