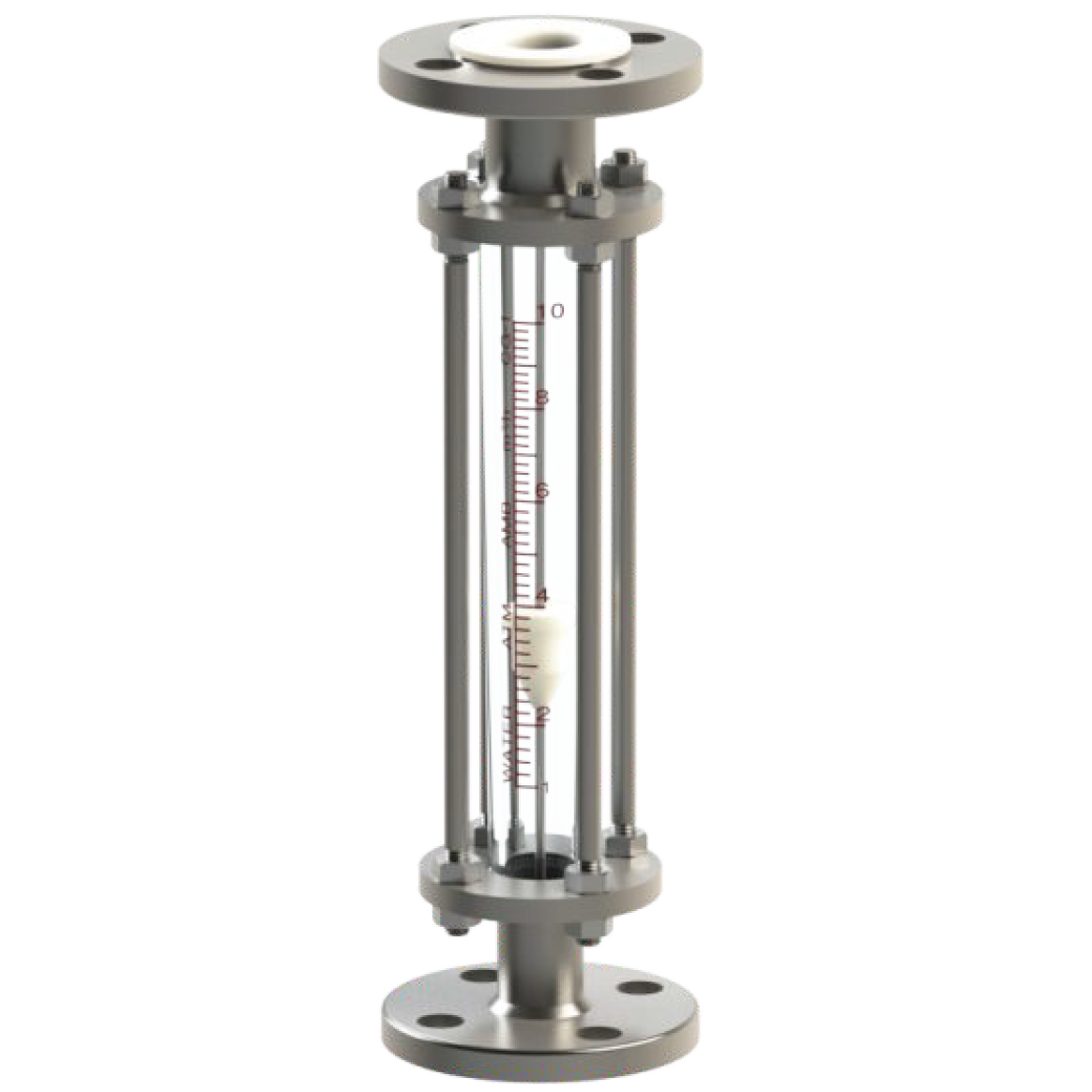

WISE CONTROL INC : F805_Glass tube flowmeter

Description

They can be used to measure the instantaneous flowrate of liquids or gases in various applications.
They are designed to be installed into vertical Teflon lines.
So they are suitable for chemical and corrosive application.

Specification

Measuring	Liquid, Gas
Meter size	15A (½") ~ 80A (3")
Material	Body : 304SS, 316SS, 316L SS with PTFE Lining Float : 316SS, 316L SS, PVC, PTFE Packing : NBR, VITON, EPDM, PTFE
Pressure rating	Max.8 kgf/cm²
Temperature	Max.120 ℃
Connection	Flange connection (JIS / ANSI / DIN / Other) Screw connection (Size: 15A~ 100A)
Accuracy	±3.0 % of full scale

Model & Type

Model	Type
F801	Glass tube flowmeter_Con'n : Flange
F802	Glass tube flowmeter_Con'n : Socket & Screw
F803	Glass tube flowmeter_Mat'l : PVC
F804	Glass tube flowmeter_Mat'l : PTFE
F805	Glass tube flowmeter_Mat'l : Teflon Lined
F806	Glass tube flowmeter_Mat'l : PP & PE
F807	Glass tube flowmeter_without Guide rod
F808	Glass tube flowmeter_Direct mount
F809	Glass tube flowmeter_with Protect cover
F810	Glass tube flowmeter_with Control valve
F811	Glass tube flowmeter_Con'n : Sanitary clamp
F812	Glass tube flowmeter_Large size type
